Nneɛma a Wɔyɛ no Ho Nsɛm

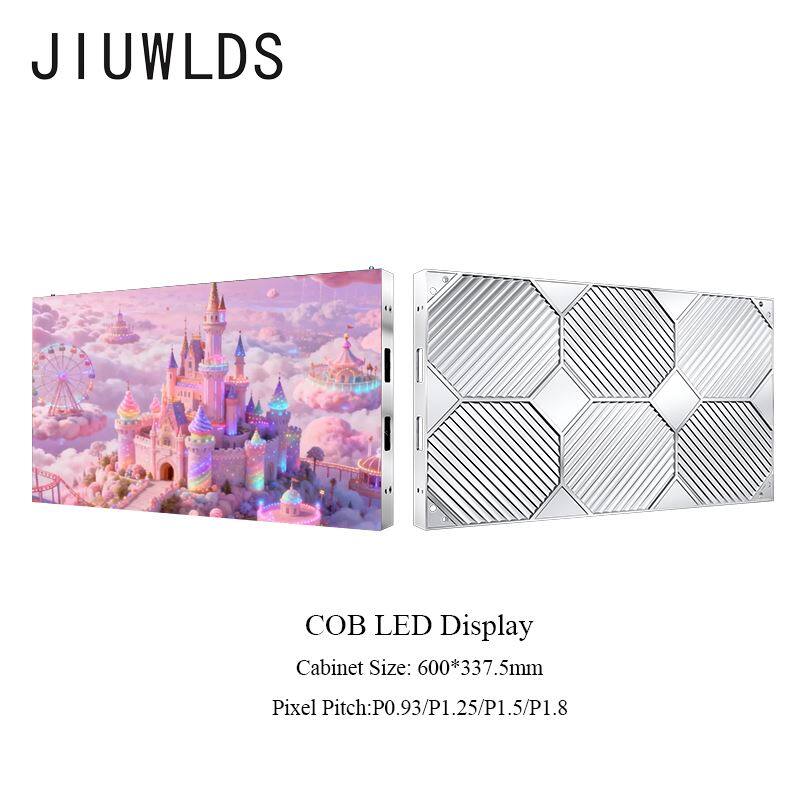

NoP1.8 COB dan mu LED a wɔde kyerɛwɔayɛ ama adwumayɛfoɔ dan mu mmeaeɛ a ɛhwehwɛ sɛ wɔyɛ adwuma a ɛyɛ den, mfonini a wɔayɛ no yie, ne ahotosoɔ a ɛkyɛ-. Ɛnam Chip-on-Board (COB) packaging mfiridwuma a ɛkɔ anim a wɔfa so no, ɛde pixel nhyiamu a ɛkɔ anim, ahobanbɔ a ɛkɔ anim, ne aniwa mu ahotɔ a ɛkorɔn ma sɛ wɔde toto SMD ano aduru a wɔtaa de di dwuma ho a. Wɔapaw saa ɔyɛkyerɛ yi kɛse ama adan a wɔhwɛ so, nnwumakuw a wɔde nsɛm kyerɛ, mmeae a wɔbɔ amanneɛ, ne aguadidan mu nneɛma a ɛyɛ fɛ a ɛho hia sɛ wɔde nsɛm a emu da hɔ ma na wɔyɛ adwuma daa. Wɔ B2B adetɔfo fam no, ɛde ano aduru a ɛkari pɛ a ɛtew asiane a ɛwɔ nsiesie mu so bere a ɛhwɛ hu sɛ wɔbɛyɛ adwuma a wotumi de ho to so no ma.
Nneɛma Titiriw a Ɛwɔ Hɔ
Mfaso a ɛwɔ so
Nsusuwii ahorow
|
Nsɛm a Wɔakyerɛkyerɛ mu |
P0.9375 |
P1.25 |
P1.5625 |
P1.875 |
|
|

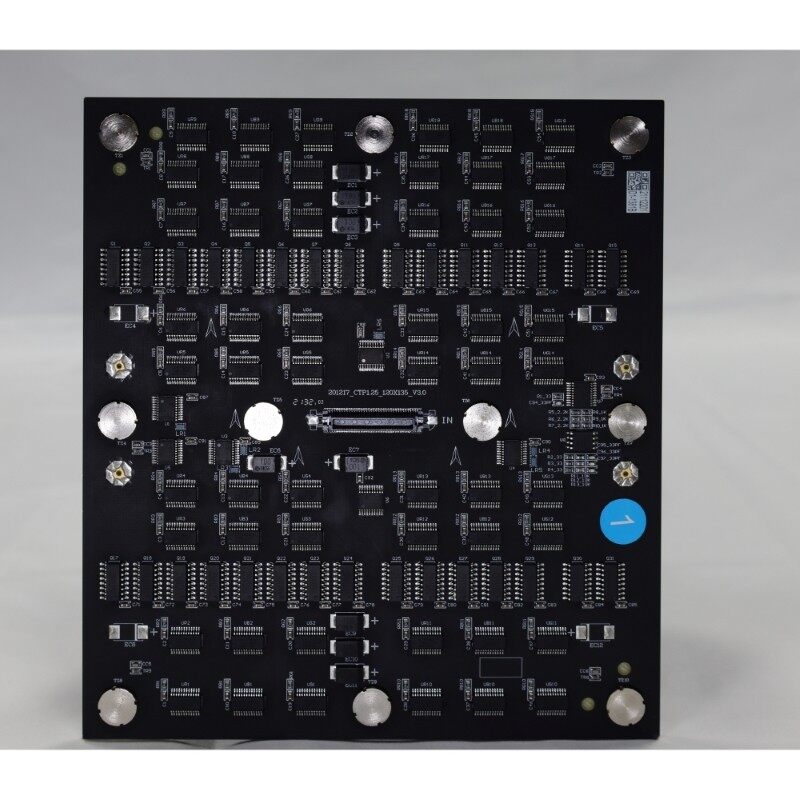

COB Module no Kɛse (mm) . |
150×168.75 |
||||
|
Panel Gyinaesi |
640×360 |
480×270 |
384×216 |
320×180 |
|
|
Kyerɛw Unit Size |
27 nsateakwaa (600×337.5×32mm) . |
||||
|
Unit Mu duru (kg) . |
4.2 |
||||
|
Circuit Nsusuwii |
Cathode a wɔtaa de di dwuma |
||||
|
White Balance Hyerɛn (nits) . |
600 |
||||
|
Nneɛma a Wɔde Yɛ Nneɛma Foforo (Hz) . |
1920–3840 |
||||
|
Nsonsonoe a Ɛma Nsonsonoe |
20000:1 |
||||
|
Angle a Wɔhwɛ |
160℃Horizontal |
||||
|
Nneɛma a wɔde hyɛ mu |
AC 100–240V 50/60Hz na ɛwɔ hɔ |
||||
|
Max Tumi a Wɔde Di Dwuma |
66W/ade biako; 330W/m2 (wɔ 600nits mu) . |
||||
|

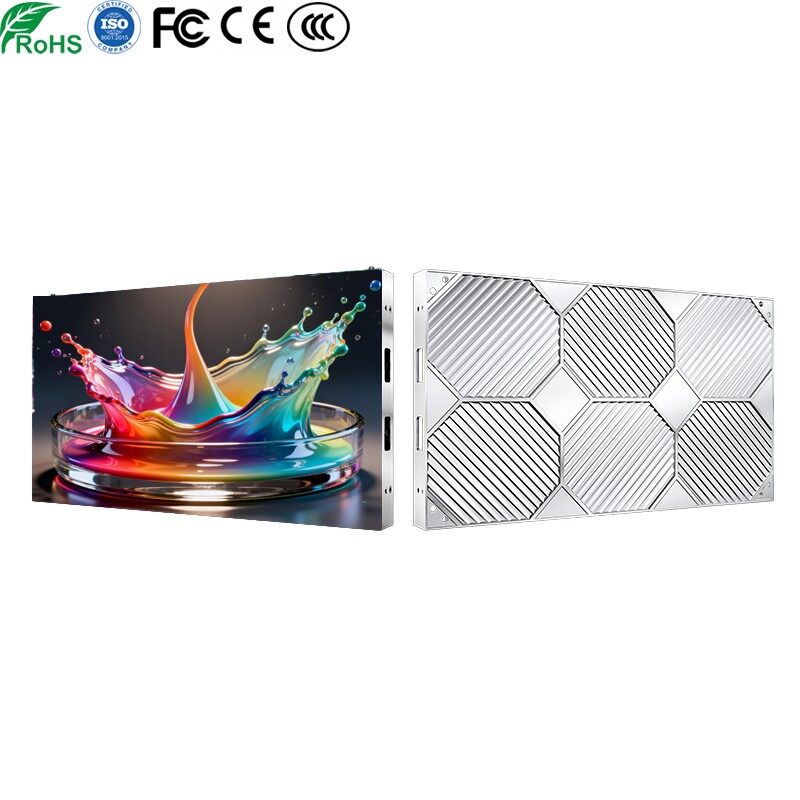

Adansedi nkrataa |
CCC, C. E., FCC, ROHS |
||||

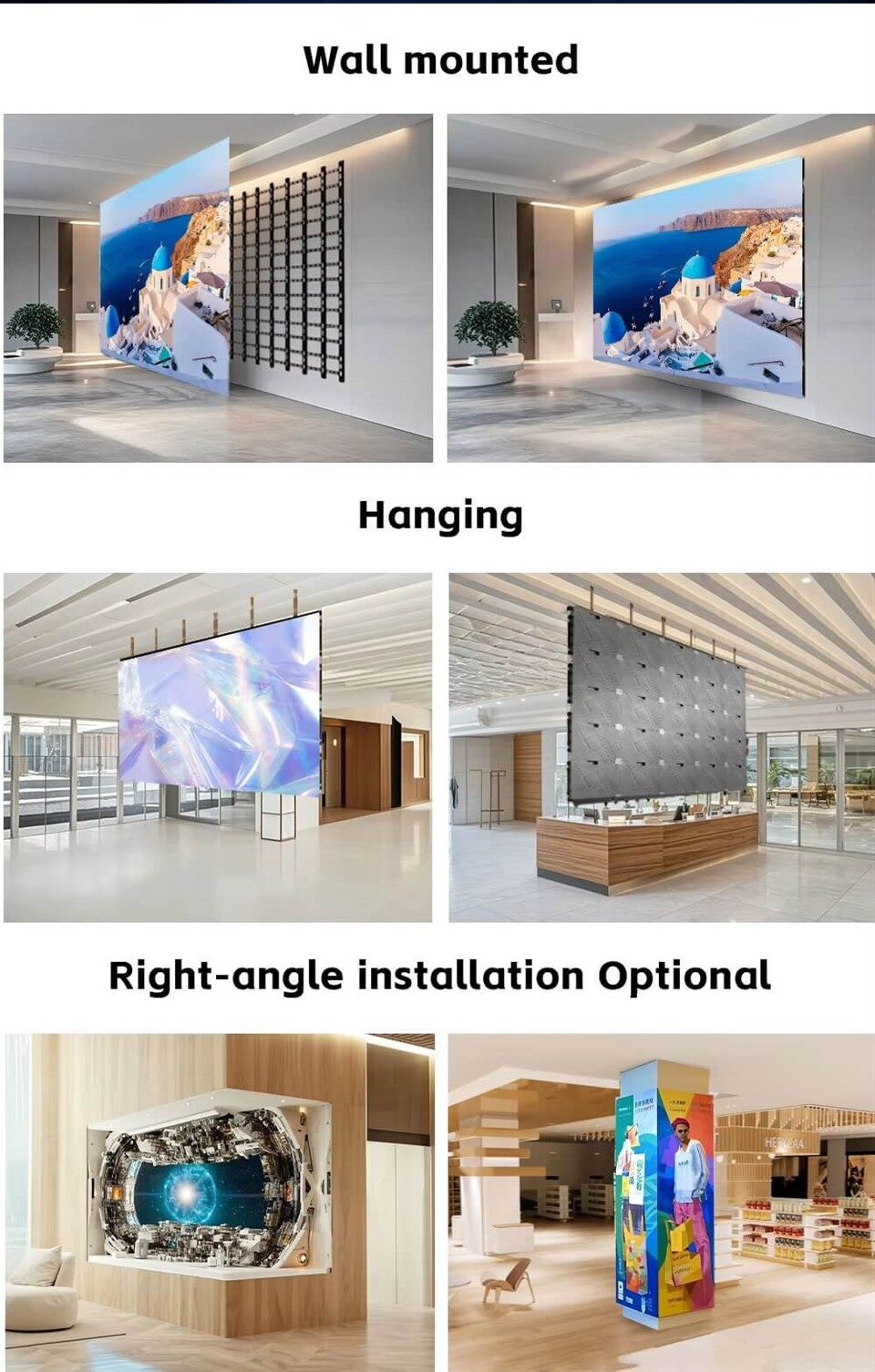

Installation a wɔde hyɛ mu
P1.8 COB Indoor LED Display no boaɔfasu-a wɔde asisi so, anim-kwan a wɔfa so kɔ hɔ, necabinet-gyina instɔlehyɛn sogyina adwuma no ahwehwɛde ahorow so. Wɔayɛ nkuku ahorow no sɛnea ɛbɛyɛ a ɛbɛhyehyɛ pɛpɛɛpɛ na ama wɔahwɛ ahu sɛ ɛbɛyɛ petee wɔ nea wɔde kyerɛ no nyinaa so. Wɔayɛ tumi ne nsɛnkyerɛnneɛ nkitahodiɛ sɛ ɛbɛto mu ntɛmntɛm, a ɛtew on-site wiring berɛ so. Anim-access nsiesie ma kwan ma wɔyɛ module ne power units ho adwuma tẽẽ fi ɔfã a wɔhwɛ no, na ɛma ɛfata ma installations a akyi baabi sua na ɛma nsiesie no tu mpɔn wɔ dan mu mmeae a wɔato mu.

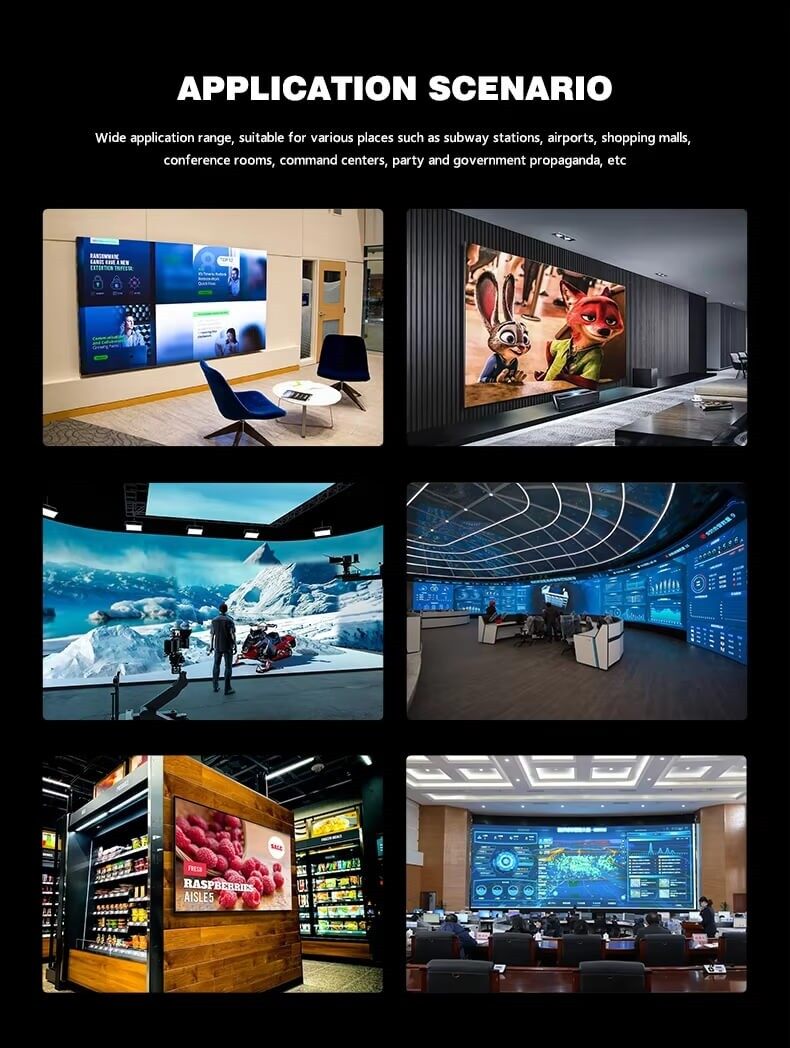

Nnwuma a Wɔde Di Dwuma
Yɛn Nnwuma a Yɛyɛ
Yɛyɛ LED display manufacturer a yɛwɔ osuahu a yɛsom amanaman ntam B2B clients, a system integrators, AV contractors, ne project developers ka ho. Yɛn adwumayɛbea ahorow no di akwan a emu yɛ den a wɔfa so hwɛ nneɛma a ɛyɛ papa so fi COB nneɛma a wɔde kyekyere nneɛma so kosi onyin ho sɔhwɛ a etwa to so. Yɛde indoor COB LED display solutions ama control rooms, adwumakuw adwumayɛbea ti, ne ɔman ahyehyɛde ahorow wɔ wiase nyinaa.
Yɛn dwumadie no bi ne adwumayɛfoɔ a wɔyɛ adwumaden ansa na-adetɔn mfiridwuma ho afotuo, mfonini a wɔsi so dua, nhyehyɛeɛ nhyehyeɛ mmoa, ne bere tenten-atɔn akyi-atɔn dwumadie a ɛwɔ spare parts a ɛwɔ hɔ. Eyi hwɛ hu sɛ wɔde adwuma no bɛma a wotumi de ho to so na wɔde mmoa a ɛkɔ so wɔ nneɛma no nkwa nna nyinaa mu.
FAQ
Q1: So P1.8 COB Indoor LED Display no fata ma dɔnhwerew tenten-dwumayɛ?
Aane. Wɔayɛ no sɛ wɔmfa nni dwuma daa wɔ dan mu, a ɛwɔ ɔhyew adwumayɛ a ɛyɛ den ne pixel ahobammɔ a ɛyɛ den, na ɛma ɛfata ma 24/7 mmeae te sɛ control rooms.
Q2: Hwɛ kwan bɛn na wɔkamfo kyerɛ ma P1.8 pixel pitch?
Hwɛ kwan a eye sen biara no taa fi ase fi bɛyɛ mita 1.8–2, na ɛma ɛyɛ nea eye ma close-view indoor applications.
Q3: So wobetumi ahwɛ display no so afi anim?
Aane. Anim-akwan nhyehyɛe no ma kwan ma wɔyɛ module ne tumi afã horow no ho adwuma fi anim, a ɛyɛ papa ma ɔfasu-ahyɛnsode ahorow a wɔde ahyɛ mu.
